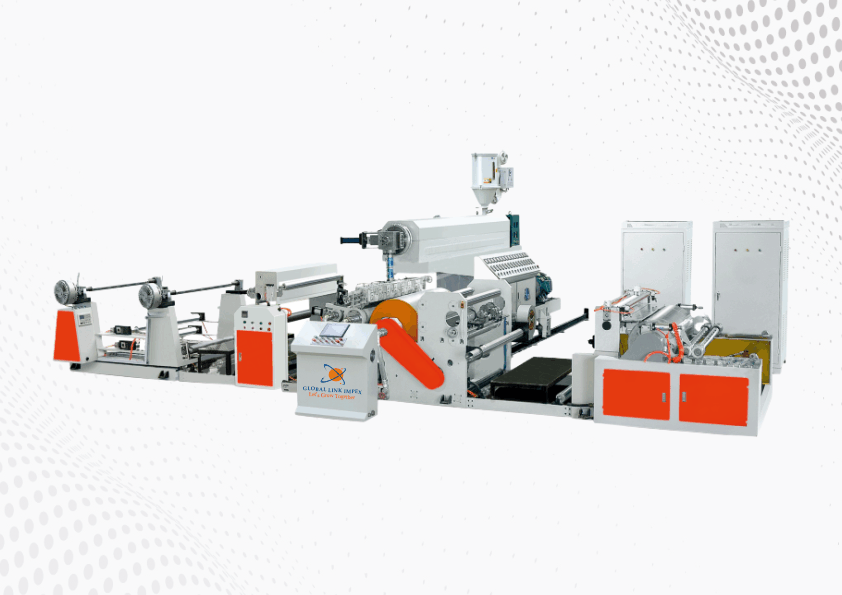

PECM- 1300 is a High-Speed Extrusion Film Coating Machine and Paper Plastic Composition Unit. This machine is not suitable for Adhesive Products. This machine is integrated with Winding, Drying, Surface Process, Composition, Edge-Cutting, Absorption Edge and Rewinding are adopted with Photoelectric Tracking, Electric Spark Treatment (Corona Treatment). Its High Effective Corona Unit and Automatic Hydraulic Exchanging filter screen are the first invention of its kind at home, which can increase the strength to strip the products.
| Production Speed | 130-180 M/Min |
| Suitable Material | 80-350 GSM |
| PE Coating Thickness | 8-25 GSM |
| Length of Die Lip | 1400 MM |
| Width of Finished Product | 600-1250 MM |
| Max Diameter for Roll | 130 MM |
| Applicable Raw Material | LDPE, LLDPE, PP (Reliance 1070 Grade) |
| L/D Ratio for Screw | 105 MM x 30 |
| Power | 75 KW |
| Applicable for Base Material | Cup Stock & Kraft Paper, BOPP, BOPA, Aluminum Foil |
