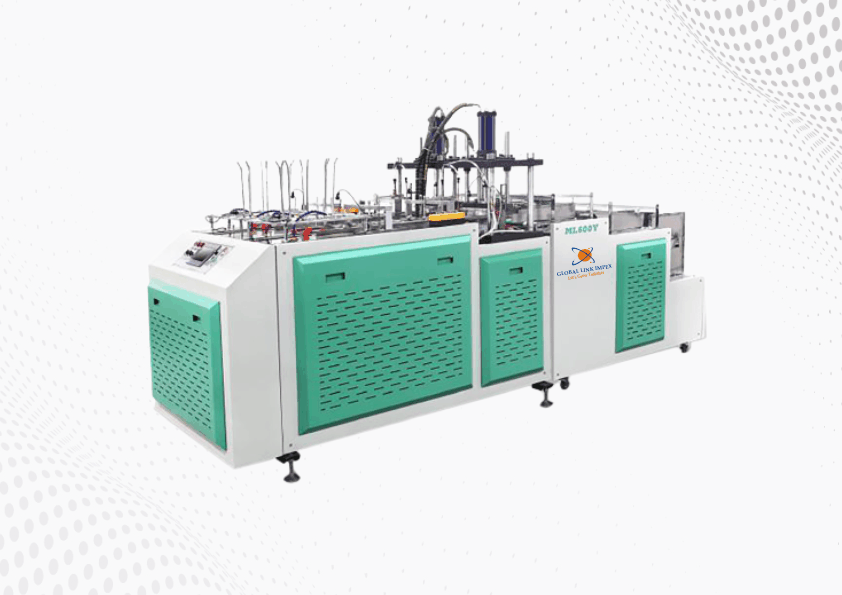

PPM-800 is a Fully Automatic Paper Plate Making Machine is developed and designed according to Market Demands. It is Pneumatic Automatic Paper Plate Forming Machine with Owned Unique Intellectual Property Rights, which has functions as Automatic Paper Feeding, Forming, Dish Ejection, Temperature Constant Controlling etc. so PPM-800 is the ideal equipment to produce various specifications of paper plates, such as, circular, square and other shaped paper plates.
Compared with traditional automatic paper plate machine, PPM-800 combines Pneumatic Principle with Hydraulic Machine and has higher production speed, more stable performance, safe operation, more humanized structure design etc.
PPM-800 is widely used in productions which use original papers or aluminum foils as raw materials.
| Paper Plate Size | 4-12 Inch |
| Paper GSM | 100-1000 GSM |
| Paper Material | Basepaper, Whiteboard Paper, White Cardboard, Aluminum Foil Paper |
| Production Capacity | Double Stations 80-140pcs/min |
| Power Requirements |
380V 50HZ |
| Total Power |
8KW |
| Machine Weight | 1800 Kgs |
| Machine Dimension | 3600×1200×1900mm |
| Air Supply Requirement |
0.4Mpa, 0.3cube/min |
| Cylinder Stroke |
150mm |
