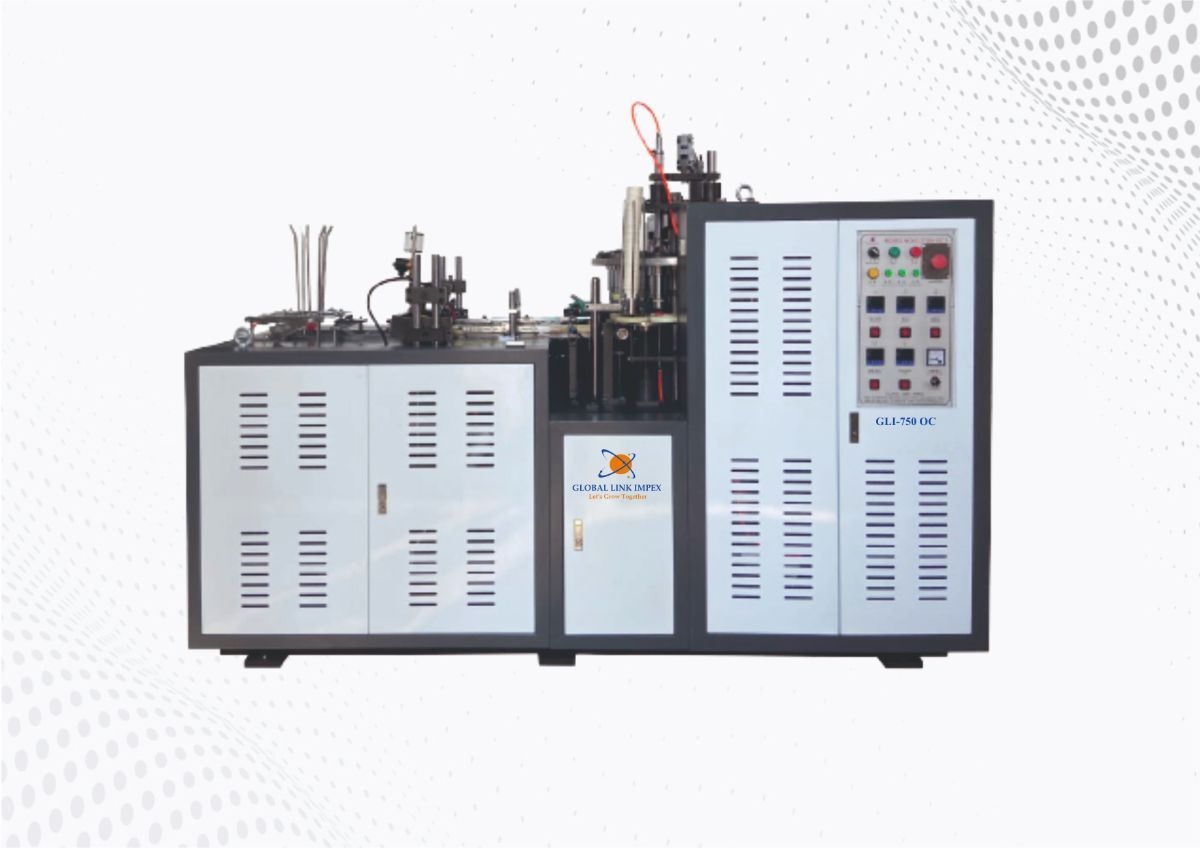

GLI 750 (OC) Paper Cup Making Machine is improved and based on the normal chain driving type. In this Machine Korean Technology is adopted which is based on Open Cam System (No Gear Box). This type of paper cup forming machinery is a multi-station automatic cup making equipment. Installed with Photoelectric sensor, Fault detecting device, High Precision Counter and other Instruments, this paper converting instrument is frequently asked for production and manufacture of a comprehensive range of drink cups. This Machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom punching, heating, rolling, rimming, rounding and tripping. It is an ideal equipment for producing drinking cups, market cups, coffee cups, advertising cups, etc. It is widely used for hot drink and cold beverages.
| Brand | Global |
| Paper Cup Size Range | 50ML-350ML |
| Production Speed | 65-75 Pcs/Min |
| Suitable Raw Material | 140-350 GSM Single / Double PE Coated |
| Working Power | 3.5 KW |
| Electricity | 380V 3 phases |
| Machine Weight | 1700-1800 Kgs |
| Machine Dimension | 2.8mtr x 1.4mtr x 1.7mtr |
| Cup Side Sealing | Normal Heater (Ultrasonic is optional) |
| Applications | Tea Cup, Coffee Cup, Water Cup, Water Glass, Ice-Cream Cup, Soup Cup & Yogurt Cup etc. |
